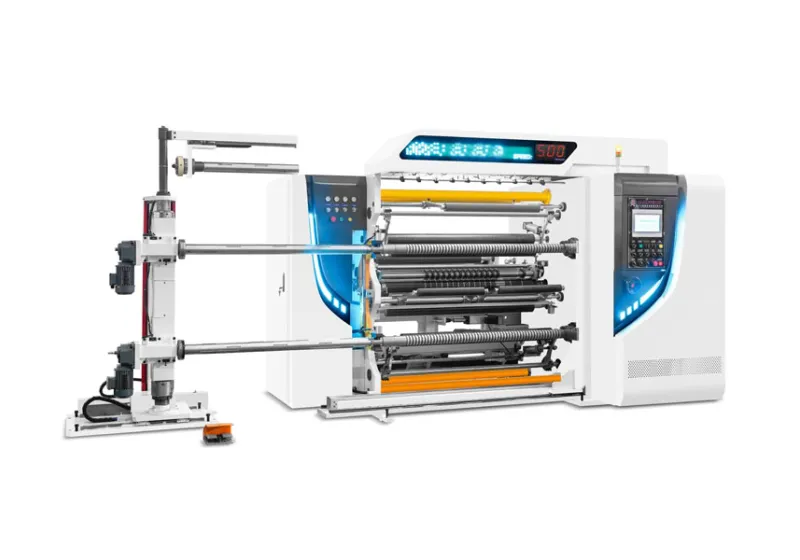

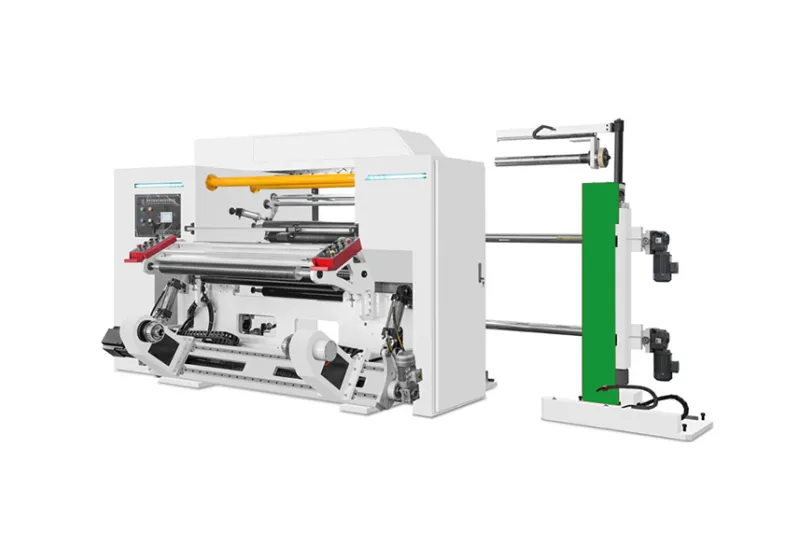

QFJ-A500 Slitting Machine
This machine adopts a sliding shaft for winding, and each winding shaft is controlled by a separate servo motor. Suitable for PVC/BOPP/CPP/PET/composite film/aluminum foil/paper and other rolls.
Product Detail
| 机器型号 (Machine model) | 1100 型 | 1300 型 | 1800 型 |
| 分切速度 (Slitting speed) | 500m/min | 500m/min | 500m/min |
| 进料宽度 (Unwinding width) | 1300mm | 1300mm | 1800mm |
| 最小分切 (Min slitting width) | 20mm | 20mm | 20mm |
| 放卷直径 (Unwinding diameter) | Φ800mm | Φ800mm | Φ800mm |
| 收料直径 (Rewinding diameter) | Φ600mm | Φ600mm | Φ600mm |
| 主机功率 (Main servo motor power) | 4KW | 4KW | 5.5KW |
| 收卷功率 (Rewinding servo motor power) | 2*4KW | 2*4KW | 2*4KW |
| 放卷功率 (Unwinding servo motor power) | 5.5KW | 5.5KW | 7.5KW |
Related Products
Slitting Machine
This machine is particularly suitable for materials with large winding diameters, with a maximum winding diameter of 1200mm. It adopts an air expansion shaft for winding, and each winding shaft is controlled by a separate servo motor. Suitable for PVC/BOPP/CPP/-PET/composite film/aluminum foil/paper and other rolls.
QFJ200 Slitting Machine
This machine is particularly suitable for materials with large winding diameters, with a maximum winding diameter of up to 1500mm. It adopts two different methods of winding: without shaft and with shaft. Suitable for PVC/BOPP/CPP/PET/composite film/aluminum foil/paper and other rolls.
QFJ400 Slitting Machine
This machine is particularly suitable for materials with large winding diameters, with a maximum winding diameter of up to 1500mm. It adopts two different methods of winding: without shaft and with shaft. Suitable for PVC/BOPP/CPP/PET/composite film/aluminum foil/paper and other rolls.
QFJ-B200 Slitting Machine
This machine adopts an air expansion shaft for winding, and each winding shaft is controlled by a separate magnetic powder tension. Suitable for PVC/BOPP/CPP/PET/composite film/aluminum foil/paper and other rolls.
