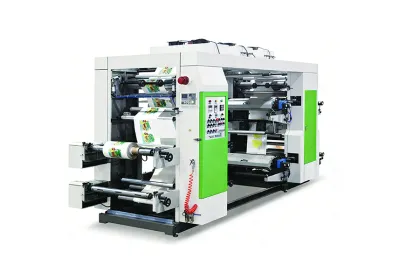

Helical gears type stack flexo printing machine

A flexographic printing press, often called a flexo press, is a modern high-speed rotary printing system widely used for printing on non-porous materials. It utilizes flexible photopolymer printing plates mounted on rotating cylinders.
Known for its versatility and efficiency, the flexo process is compatible with a wide range of substrates, including plastic films, labels, corrugated cardboard, and paper. A key advantage is its ability to use fast-drying, environmentally friendly water-based or UV-curable inks, making it a sustainable choice for packaging printing.

PDF download Online Inqury

Product Detail

1.Feature:

1. Use 75mm thickness iron casting.

2. Take it easy,accurate color,long life.

3. The counter meter can be set according to the requirements, cut off the material automatically stop.

4. Hydraulic lifting plate cylinders ,automatic mixed inks .

5. High quality cave ceramic anliox rollers pass ink and evenly .

6. Dry system ,high running and automatic off.

7. Inverter adjust suitable different printing speed .

8. The plate roller seat and rewind frame fixed point and stop switch ,easy to operation machine.

Machine parameter:

Model	HG
Machinecolor	2/4 /6 color
Structure	stack type, iron body
Geardrive	helical gear
Plate material	Photosensitive resin plate
Platethickness	According to customer requirements
Printlength(repeat)	200-900mm customizable
Mechanical speed	90m/min
Printing speed	0-70m/min
Machine power	25KW
Machinesize	5.5* 2.4*2.7m
Machine voltage	3P 380V 50HZ

Product Detail

Feature:

1. Use 75mm thickness iron casting.

2. Take it easy,accurate color,long life.

3. The counter meter can be set according to the requirements, cut off the material automatically stop.

4. Hydraulic lifting plate cylinders ,automatic mixed inks .

5. High quality cave ceramic anliox rollers pass ink and evenly .

6. Dry system ,high running and automatic off.

7. Inverter adjust suitable different printing speed .

8. The plate roller seat and rewind frame fixed point and stop switch ,easy to operation machine.

Machine parameter:

Model	HG
Machinecolor	2/4 /6 color
Structure	Stack type, iron body
Geardrive	Helical gear
Plate material	Photosensitive resin plate
Platethickness	According to customer requirements
Printlength(repeat)	200-900mm customizable
Mechanical speed	90m/min
Printing speed	0-70m/min
Machine power	25KW
Machinesize	5.5* 2.4*2.7m
Machine voltage	3P 380V 50HZ
