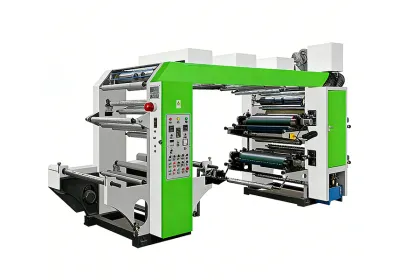

Straight gear type stack flexo printing machine

Easy to operate, soft start, accurate color registration.
The meter can be set according to the requirements, the number of printing, the digital stop, the automatic shutdown of the material.
Pneumatic lifting plate cylinder, the ink is automatically running after lifting.

PDF download Online Inqury

Product Detail

Feature：

1. Easy to operate, soft start, accurate color registration.

2. The meter can be set according to the requirements, the number of printing, the digital stop, the automatic shutdown of the material.

3. Pneumatic lifting plate cylinder, the ink is automatically running after lifting.

4. The anilox roller conveys ink and the ink color is uniform.

5. Reliable drying system, with high-speed operation, automatic shutdown when the machine is stopped.

6. 360 degree continuously adjustable vertical version of the device.

7. Frequency control, adapt to different printing speeds.

Machine parameter:

Model	SG
Machinecolor	2/4 /6 color
Structure	stack type, iron body
Geardrive	straight gear
Plate material	Photosensitive resin plate
Platethickness	According to customer requirements
Printlength(repeat)	200-900mm customizable
Mechanical speed	70m/min
Printing speed	0-50m/min
Machine power	20KW
Machinesize	5* 2.4*2.3m
Machine voltage	3P 380V 50HZ
