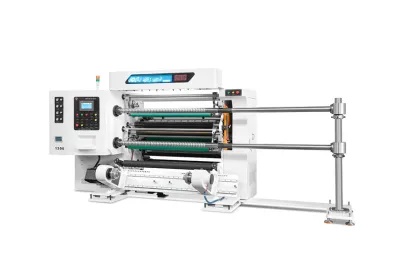

QFJ-B500 Slitting Machine
This machine adopts central surface contact winding, and each winding shaft is controlled by a separate magnetic powder tension. Suitable for PVC/BOPP/CPP/PET/composite film/aluminum foil/paper and other rolls.
Product Detail
| 机器型号 (Machine model) | 1100 型 | 1300 型 | 1800 型 |
| 分切速度 (Slitting speed) | 500m/min | 500m/min | 500m/min |
| 进料宽度 (Unwinding width) | 1300mm | 1300mm | 1800mm |
| 最小分切 (Min slitting width) | 20MM | 20MM | 20MM |
| 放卷直径 (Unwinding diameter) | Φ70mm | Φ70mm | Φ70mm |
| 收料直径 (Rewinding diameter) | Φ400mm | Φ400mm | Φ400mm |
| 主机功率 (Main servo motor power) | 3KW | 3KW | 4.5KW |
| 收卷功率 (Rewinding servo motor power) | 2*3KW | 2*3KW | 2*3KW |
| 放卷功率 (Unwinding servo motor power) | 3KW | 4.5KW | 5.5KW |
